Flanders Scientific

XMP550

XMP550

Regular price £16,995.00
Regular price Sale price £16,995.00
Sale Sold out

Prices exclude VAT

Currently shipping 1 to 2 weeks from receipt of order.

The XMP550 is a 55" UHD resolution HDR and SDR reference mastering monitor built around a groundbreaking new QD-OLED panel featuring 2,000nits peak luminance, 4,000,000:1 contrast, and our widest color gamut to date.

The XMP550 qualifies as a Dolby Vision mastering monitor finally bringing an end to the days of compromising between smaller reference grade HDR displays and larger non-reference client displays. The XMP550 delivers the best of both worlds with truly reference grade performance and professional connectivity in a form factor large enough for both the colorist and clients to view.

Learn more about the XMP550 at FlandersScientific.com

View full details

55" QD-OLED HDR Mastering Monitoring

The XMP550 is a 55" UHD resolution HDR and SDR reference mastering monitor built around a groundbreaking new QD-OLED panel featuring 2000nits peak luminance, ~4,000,000:1 contrast, and our widest color gamut to date.

HDR Compatibility Rating: Mastering

The XMP550 qualifies as a Dolby Vision mastering monitor finally bringing an end to the days of compromising between smaller reference grade HDR displays and larger non-reference client displays. The XMP550 delivers the best of both worlds with truly reference grade performance and professional connectivity in a form factor large enough for both the colorist and clients to view.

  • AutoCal

    All FSI monitors come pre-calibrated from the factory and the XMP550 also features highly accurate volumetric Auto Calibration making it incredibly easy for clients to recalibrate the display over time.

  • Third Party Calibration

    The XMP550 is also compatible with popular 3rd party calibration solutions including Calman and ColourSpace. Quickly and easily perform your own custom 3D+1D LUT based calibration with any program capable of saving into FSI’s calibration LUT formats.

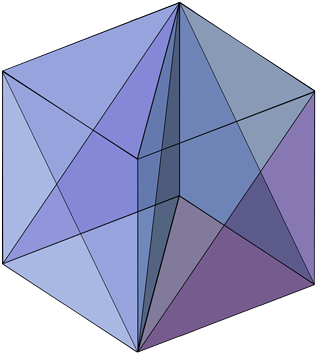

  • Advanced Tetrahedral LUT Processing

    The XMP550 utilizes advanced tetrahedral LUT interpolation delivering a higher degree of precision with better on screen performance than simple trilinear LUT interpolation.

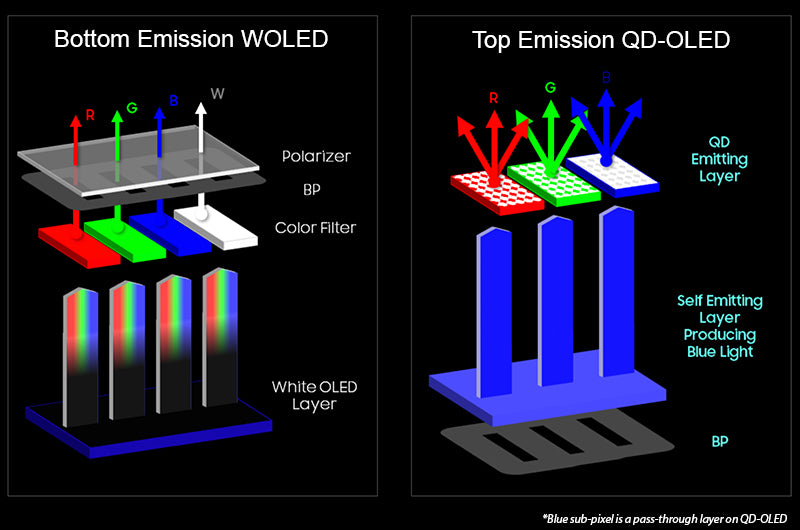

  • Advantages Over Other OLED Technologies

    Other available OLED technologies are either too dim for HDR mastering or suffer from very significant volumetric collapse due to their non-additive RGB+W sub pixel structures making them unsuitable for HDR use cases that demand color accuracy. QD-OLED is truly RGB additive for white, thus avoiding color volume limitations.

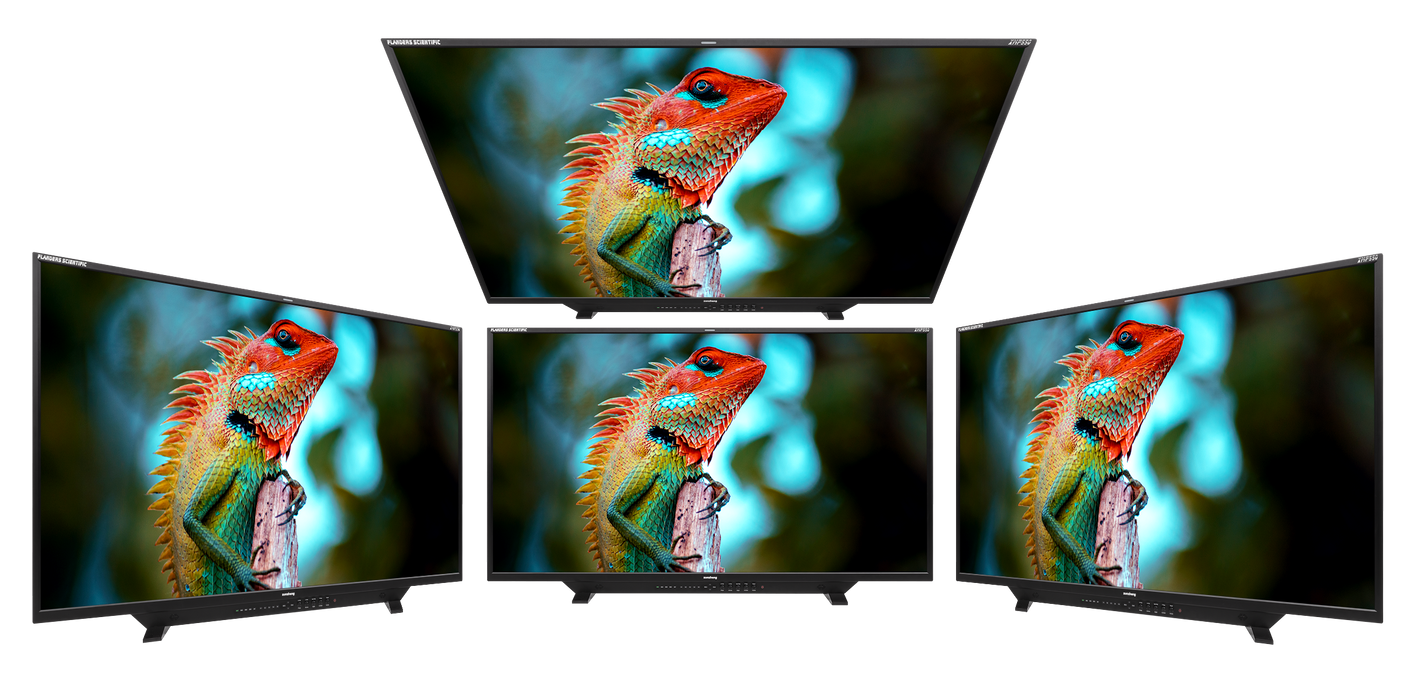

  • Exceptional Off-Axis Viewing

    The XMP550 has the widest viewing angle, with the least off-axis contrast and color shift, ever featured in an FSI display. So not only will a colorist’s clients benefit from being able to view a reference image on a large screen they will also have the flexibility to view the image from anywhere in the room without having to worry about the off-axis limitations often seen in other display technologies.

  • Advantages over FALD LCD

    The XMP550’s accurate per pixel level luminance control means true black levels at all times with none of the small bright objection or motion artifact limitations found on FALD (Full Array Local Dimming) LCDs. The per pixel emissive design of the XMP550’s QD-OLED panel guarantees exceptional simultaneous contrast with all varieties of content.

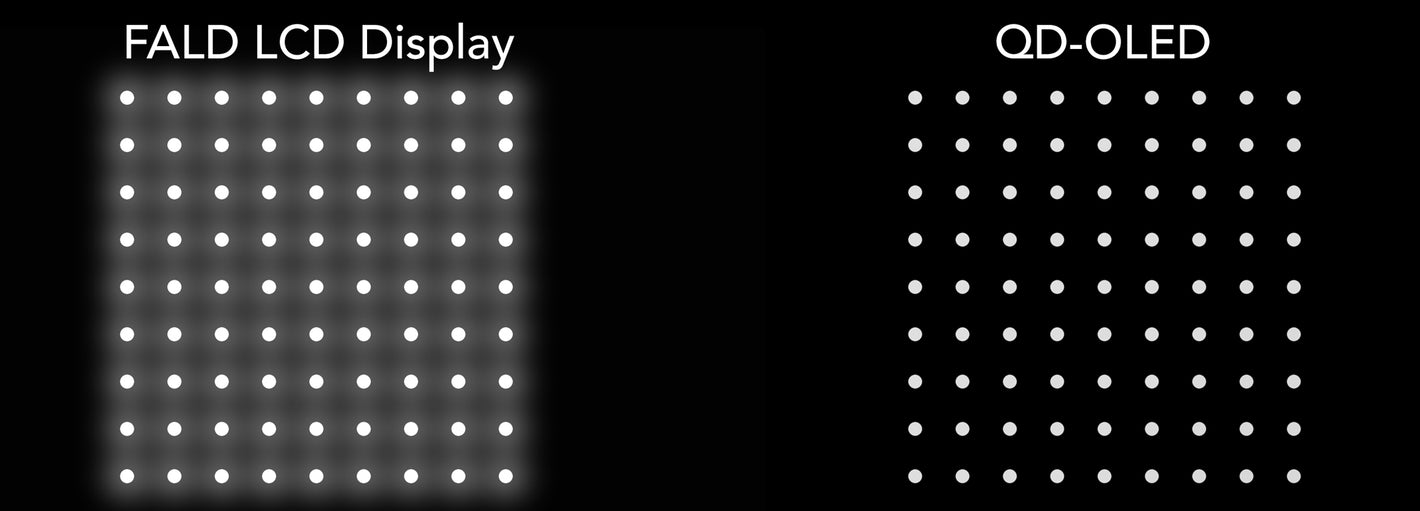

    While the amount of halation can vary greatly between FALD LCDs, all FALD systems will show at least some degree of raised black levels and haloing when rendering a high contrast image like this example of a white circles on a black background graphic. The XMP550’s QD-OLED panel on the other hand can render these types of very bright white highlights while maintaining the intended deep black background.

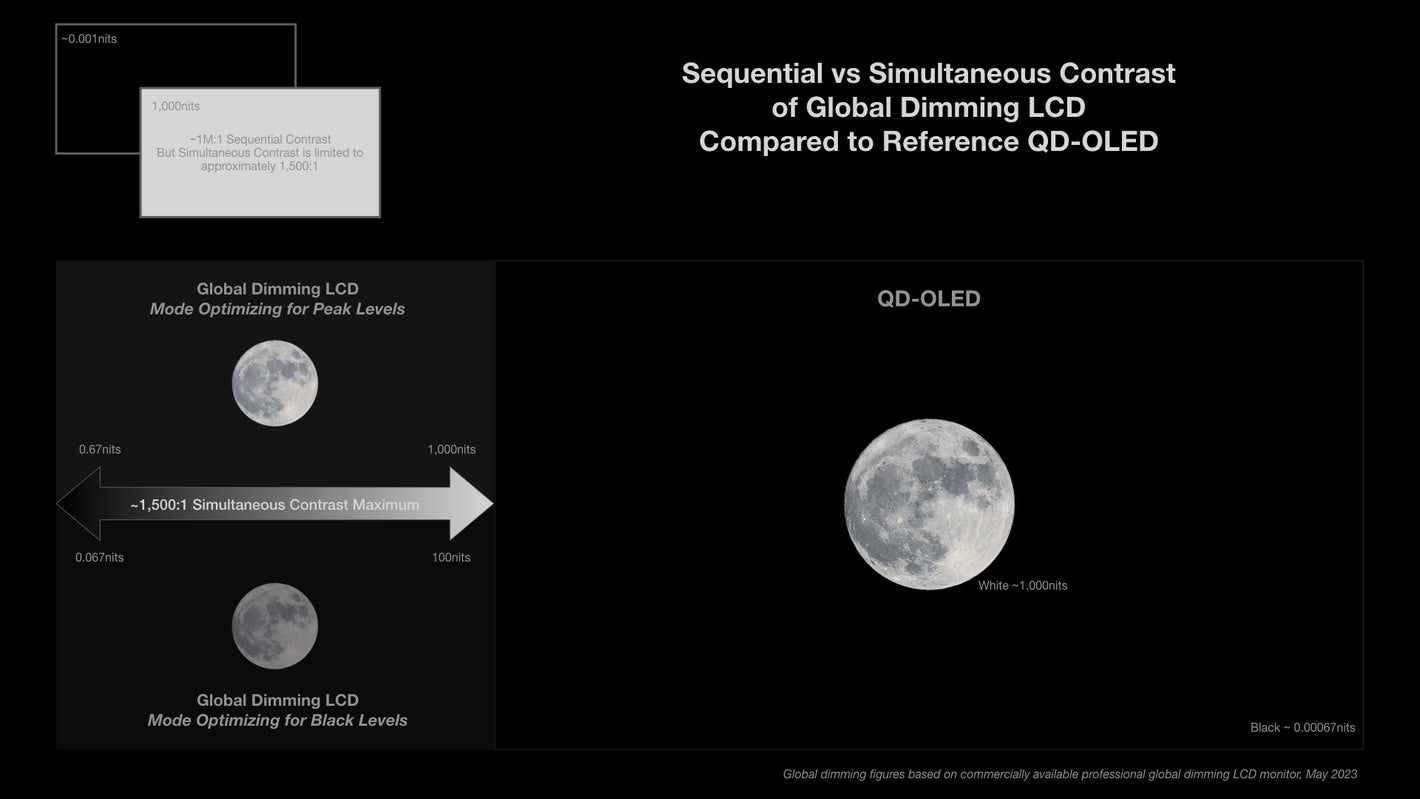

  • Advantages over Global Dimming LCDs

    Reference grade HDR displays should be able to produce high simultaneous contrast, not just a bright image. Global dimming LCDs can either produce a bright image or a dark image, but cannot produce images that simultaneously have bright highlights and dark lowlights. Global dimming LCD specifications often quote high sequential contrast ratio figures, where a display’s peak luminance and and black level are measured at different times, but this can be quite misleading as simultaneous contrast is problematically low on these devices for any HDR content mastering use-cases. The XMP550 features class leading simultaneous contrast rendering both bright highlights and dark lowlights with incredible clarity and accuracy at the same time.

XMP550 Tech Specs

Panel Specifications
Screen Size
55 in
Resolution
3840x2160
Bit Depth (Color)
10bit (1.073 Billion Colors)
Contrast Ratio
~4,000,000:1
Panel Type
Quantum Dot OLED
Pixel Efficiency
99.999%
Max Luminance
~2000cd/m 2 @ L20
Viewing Angle
179°
Maximum Native Color Gamut
Max Native Color Gamut
Inputs
4 x BNC
12G/6G/3G/HD-SDI
Outputs
4 x BNC
12G/6G/3G/HD-SDI - Clean Loop
4 x BNC
6G/3G/HD-SDI - Processed Loop
Supported SDI Formats
SMPTE-274M
1080i (60/59.94/50)
1080p (30/29.97/25/24/24PsF/23.98/23.98PsF)
SMPTE-296M
720p (60/59.94/50/30/29/25/24/23.98)
2K
2048x1080 (30p/30PsF/29.97p/29.97PsF/25p/25PsF/24p/24PsF/23.98p/23.98PsF)
SMPTE-372M
1080p (60/59.94/50) 4:2:2 YCbCr, RGB
1080i (29.97/25/24/23.98) 4:4:4 YCbCr, RGB
1080p (30/29.97/25/24/23.98) 4:4:4 YCbCr, RGB
720p (60/59.94/50) 4:4:4 YCbCr, RGB
SMPTE-425M-AB
- Level A & Level B supported
- Level B supports 2 x SMPTE
292M image format mapping
372M image format mapping
- RGB & YCbCr
12 & 10bit 4:2:2 1920x1080p (60/59.94/50)
4:4:4 1280x720p (60/59.94/50/30/29.97/25/24/23.98)
12 & 10bit 4:4:4 1920x1080i (60/59.94/50)
12 & 10bit 4:4:4 1920x1080p (30/29.97/25/24/23.98 + PsF variations)
12 & 10bit 2k (2048x1080)p (30/29.97/25/24/23.98 + PsF variations)
12 & 10bit 2K (2048x1080)p (60/59.94/50/48/47.95)
ST2081 & ST2082
4K & UHD
Single-Link 12G
Single-Link 6G
Dual-Link 6G
Dual-Link 3G Square Division
Quad-Link 3G Level A Square Division
Quad-Link 3G Level B Square Division
Quad-Link 1.5G Square Division

10 & 8bit 4:2:2 4096x2160p (60/59.94/50/48/47.95/30/29.97/25/24/23.98)
10 & 8bit 4:2:2 3840x2160p (60/59.94/50/48/47.95/30/29.97/25/24/23.98)
12 & 10bit 4:4:4 4096x2160p (30/29.97/25/23/23.98) YCbCr & RGB
12 & 10bit 4:4:4 3840x2160p (30/29.97/25/23/23.98) YCbCr & RGB
Audio
Audio Disembedding
Yes
Audio Level Meters
Yes
Internal Speakers
2
Audio In (Mini-Jack)
1
Audio Out (Mini-Jack)
1
Features
Removable Desktop Feet
Standard
External Mounting Points
300mm x 200mm VESA
Color Space Selection
REC709 / DCI-P3 / Rec2020* / Custom
*covers ~90% of Rec2020 color gamut
Direct Connect Volumetric AutoCal
Compatible with CR100, K10A, K80, CA210 & CA310 (10mm), CA410, & i1D3DS OEM
Power
AC Input
IEC / C14
Power Requirement
100~240V AC
Power Consumption (Appx.)
75W - 325W
Physical Characteristics
Weight with Desktop Feet
43 lbs (19.5 Kg)
Chassis
Aluminum Frame
Dimensional Drawing
