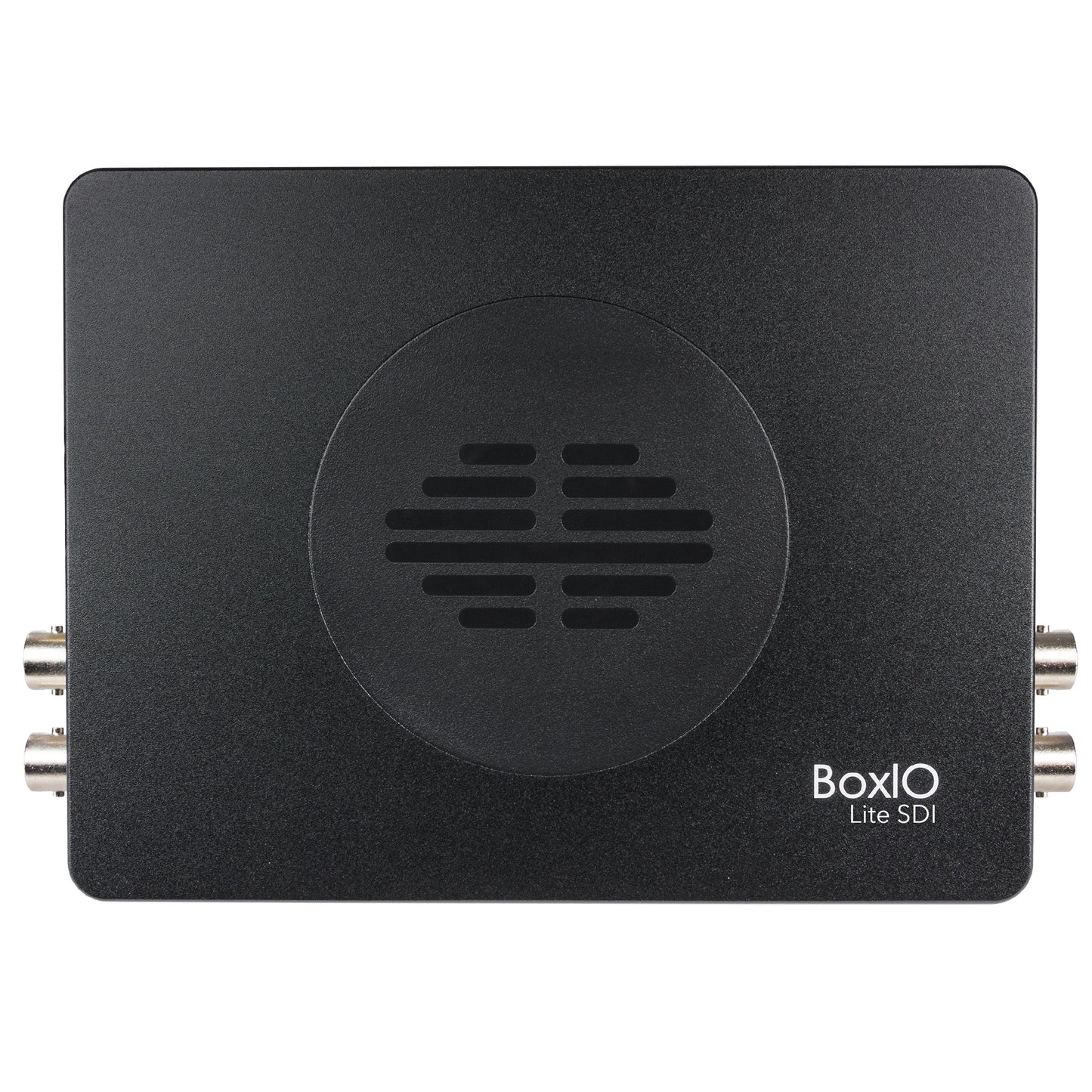

BoxIO Lite SDI
BoxIO Lite SDI
BoxIO Lite SDI is an advanced color management device designed for both color critical post production environments and demanding on set color management applications.
BoxIO Lite SDI supports both 3D and 1D LUTs for unparalleled image control. BoxIO Lite SDI can be used for calibration, on set grading, and other LUT based operations.
33x33x33 3D LUT support
Twice the data points of devices with 26^3 3D LUTs and over 7 times the data points of devices with just 17^3 3D LUTs
4096 entry point 1D LUTs both before and after the 3D LUT
Many LUT devices offer no 1D LUT support or only support 1D LUTs or 3D LUTs, but not a combination of the two. The few devices that do offer 1D LUT support typically only offer 1024 entry point 1D LUTs in a single position, either before or after the 3D LUT.
Tetrahedral LUT interpolation
Trilinear LUT interpolation, found on many LUT devices, can be particularly problematic in HDR workflows. Tetrahedral LUT interpolation can provide significantly improved accuracy and visual performance.
Full 12bit 444 signal support
Many LUT boxes limit support to 10bit signals, but some HDR specifications are specifically optimized for 12bit signal paths.
Pomfort's Livegrade Pro
QTAKE's Grade Module
BoxIO supports frame capture over IP allowing select applications including FSI’s IP Remote Utility and Pomfort’s Livegrade to grab reference still frames from incoming video signals.
Frames captured in BoxIO’s own .RAW format from the IP Remote Utility can be displayed using Frame Callback. Review reference stills in on set environments, display complex test patterns, and preview new looks on previously captured content.
Waveform and Vectorscope transmitted directly from your BoxIO to your computer with no additional equipment needed. Simply connect your BoxIO and computer to the same network and use the IP Remote Utility. ScopeStream is also directly integrated in Pomfort’s Livegrade Pro allowing you to view BoxIO generated Waveform and VectorScope without having to leave the application.
IP Remote Utility
Quickly change mode and channel settings, load LUTs to BoxIO, toggle LUTs on and off instantly, update, manage BoxIO IP and WiFi settings, and capture frames at full resolution that can be saved instantly as a .JPG or .BMP
1x 12bit 3Gbps SDI
2x 12bit 3Gbps SDI
1x 12bit 3Gbps SDI Clean Loop Through
3D and 1D LUT support
33x33x33 and 17x17x17 sided LUTs
4pin mini-XLR 12~18V
Approx. 7W power consumption
Weight: 2.2lbs (998g)
